Sound Settings

This menu is used to adjust the sound effects for the whole system.

Some functions and images may differ from the actual product, according to the model, option and country.

Beep

This menu is used to play a beep sound whenever you operate the touch screen.

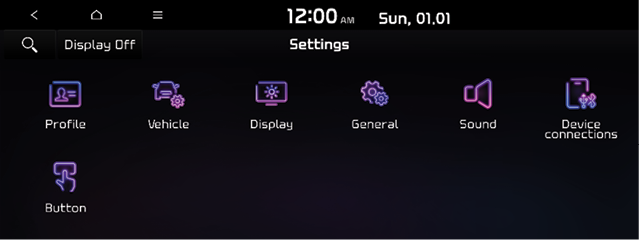

Press [Setup] > [Sound] > [Beep].

Position

This menu allows you to set the sound position.

For example, you can set the sound close to the driver-seat so that the volume is relatively lower in the passenger or rear seats.

1. Press [SETUP] > [Sound] > [Position].

2. Adjust the sound position. or press [W] / [S] / [A] / [D] to control the sound position.

, Note

Press [j] to concentrate the sound in the centre of the vehicle.

Volume levels

Sound level functions and images may differ from the actual product, according to the model, option and country.

System sound

This menu allows you to set the volume level for [System sound], [Phone projection].

1. Press [SETUP] > [Sound] > [Volume levels] > [System sound].

2. Adjust the [Beep] / [Ringtone] / [Navigation].
3. Press [I] / [J] to control or drag the slide bar to control volume settings.

, Note

Press [Reset] to reset the volume level settings.

Phone projection

This menu allows you to set the volume level for [Android Auto], [Apple CarPlay].

1. Press [SETUP] > [Sound] > [Volume levels] > [Phone projection].

2. Adjust the desired option.
3. Press [I] / [J] to control or drag the slide bar to control volume settings.

, Note

Press [Reset] to reset the volume level settings.

Equaliser

This menu allows you to set the [BASS]/[MID]/[TREBLE].

1. Press [SETUP] > [Sound] > [Equaliser].

2. Adjust the [BASS] / [MID] / [TREBLE].
3. Press [I] / [J] to control or drag the slide bar to control equaliser settings.

, Note

Press [Centre] to initialize the settings.

Volume ratio

This menu is used to set the volume ratio.

1. Press [SETUP] > [Sound] > [Volume ratio].

2. Select the desired item.

• [Proximity warning]: Lowering of audio volume when the shift lever is set to reverse.
• [Navigation during phone calls]: Playback of route guidance during phone calls.
• [Volume limitation on start-up]: Limits the volume ratio automatically when starting the system. After you turn the system on, audio volume would not be changed if previous volume was moderate.

Advanced (If equipped)

This menu allows you to set the volume options settings.

Depending on the option, the image may differ from the actual screen.

1. Press [SETUP] > [Sound] > [Advanced].

2. Press the desired items.

• [Speed dependent volume control]: You can set the speed dependent volume control among [High], [Mid], [Low] and [Off] so that it controls the volume according to the speed of the vehicle.

Reset

This menu is used to reset all sound settings.

1. Press [SETUP] > [Sound] > [Reset].

2. Press [Yes].
